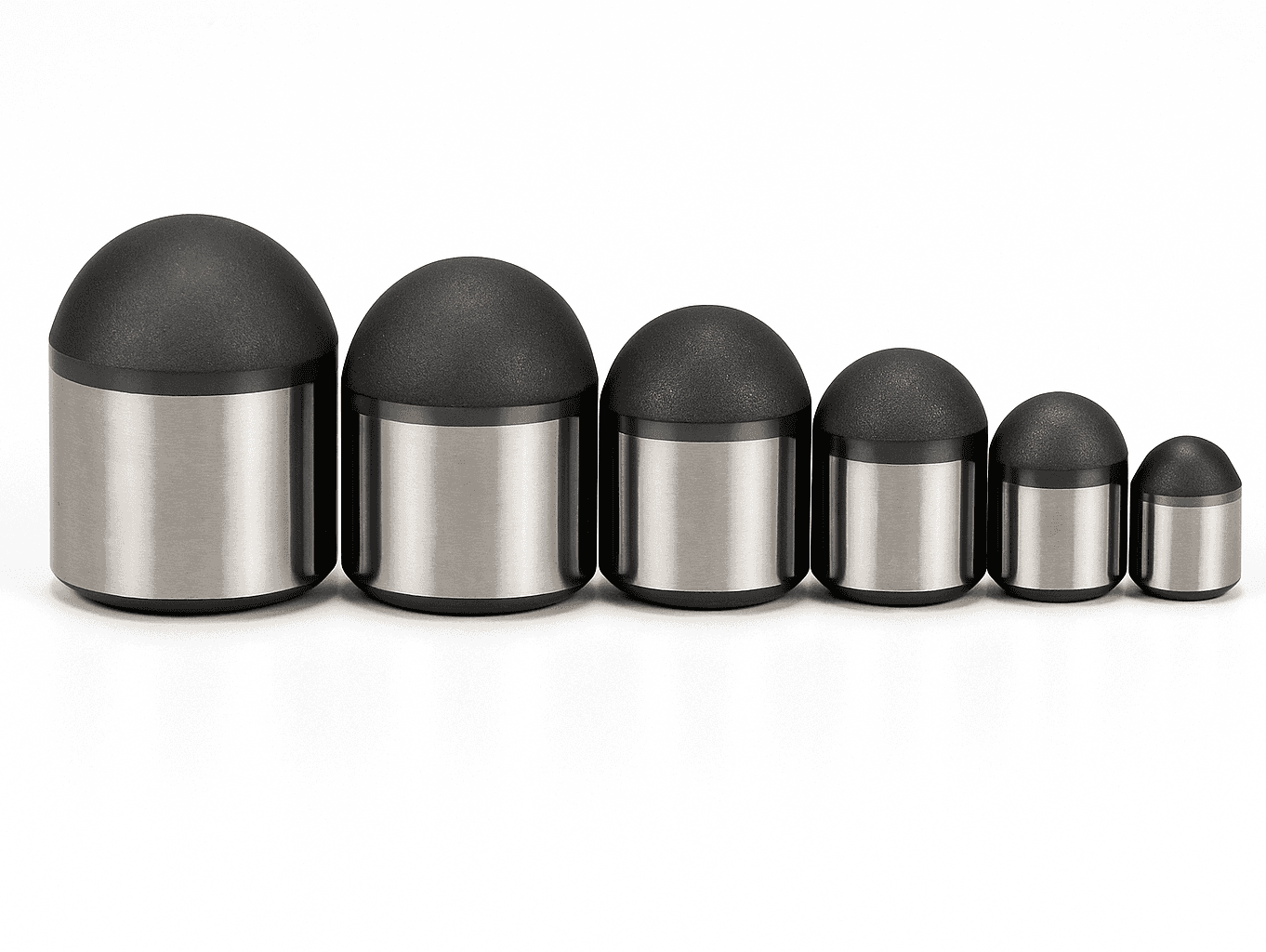

Product Name: Spherical PCD Buttons (Polycrystalline Diamond Buttons)
Brand/Model: Customizable
Material Composition:
Key Features:
1. Wear Resistance: PCD surface hardness ≥ HV8,000, withstands abrasive rock formations.
2. Thermal Stability: Operates up to 750°C without degradation.
3. Impact Resistance: Tungsten carbide substrate absorbs shock loads (≥50 J impact energy).
4. Spherical Design:
5. Customization: Diameter range 8-25 mm, height 4-15 mm, chamfer angles 0.3-0.5 mm.
Applications:
Performance Data:
Functional Positioning Tailored for Hard Rock Drilling
Spherical PCD buttons are engineered primarily for use in pdc drill bits manufacturers targeting hard rock geological conditions. These components are specifically designed to meet the demands of mining, oil, and gas drilling industries where enhanced durability and performance are critical. The spherical geometry with a 360° cutting edge optimizes drilling torque and load distribution, thus facilitating integration within existing drill bit assemblies. Manufacturers seeking to extend tool lifespan while minimizing operational downtime find these pcd buttons essential for improving overall system reliability. The product’s dimensional customization further ensures compatibility with various bit designs, supporting tailored engineering solutions in challenging drilling environments.
Technical Composition and Measurable Performance Criteria
These pcd buttons comprise a high-purity polycrystalline diamond (over 90% diamond content) layer metallurgically bonded through HPHT sintering at 1,400°C and 5 GPa to a tungsten carbide substrate, combining extreme hardness with shock absorption. Dimensional options include diameters from 8 to 25 mm, heights between 4 and 15 mm, and chamfers ranging 0.3 to 0.5 mm, enabling precise fitment to specified bit geometries. The 360° cutting edge design reduces localized stress, lowers torque requirements, and ensures consistent cutting efficiency. Performance metrics include hardness around 8,000 HV and thermal stability up to 750°C, making these buttons suitable for high-temperature, abrasive rock formations and providing a reported service life six to eight times longer than conventional tungsten carbide buttons.
Industry Applications and Practical Value in Drilling Operations
The application of spherical PCD buttons is predominantly within hard rock drilling contexts, where drilling efficiency and operational costs are major concerns. These components are utilized extensively in down-the-hole (DTH) and tricone drill bits, improving penetration rates due to optimized cutting mechanics and reduced torque. Their enhanced wear resistance translates into longer maintenance intervals and reduced replacement frequency, directly impacting cost-efficiency in mining, quarrying, and oil exploration projects. By incorporating these pcd buttons, operators benefit from consistent drilling performance even under thermal cycling stresses. The adaptability to custom specifications ensures that engineering teams can maintain optimal bit performance aligned with evolving geological challenges.
Structural and Design Robustness Supporting Integration
The spherical PCD button's design leverages a high-strength tungsten carbide (WC-Co alloy) substrate bonded through HPHT sintering to produce a unified structure capable of enduring extreme mechanical and thermal loads. The 360° continuous cutting edge distributes mechanical forces evenly, reducing the risk of premature failure and improving cutting consistency. Customizable diameters, heights, and chamfer geometries enhance the ability to retrofit these components into existing drill bit designs without significant modifications. This modular adaptability elevates manufacturing precision and supports scalable production for diverse drilling configurations. These design choices emphasize durability and resilience, essential parameters for advanced pdc drill bit systems in demanding operational contexts.
Performance, Usability, and Long-Term Value for End Users
From a performance perspective, spherical PCD buttons offer a superior combination of hardness and impact tolerance compared to traditional tungsten carbide alternatives. The thermal stability enables them to operate in conditions reaching 750°C without degradation, an essential factor in deep well and high-friction drilling scenarios. Users benefit from significantly extended tool life—six to eight times greater—resulting in lower total cost of ownership and downtime reduction. The uniform 360° cutting edge design improves torque efficiency, reducing power consumption and wear on the drill bit assembly. Overall, these attributes contribute to enhanced drilling productivity and system reliability, positioning these pcd buttons as an economically advantageous choice for engineering procurement decisions.
Enhanced Wear-Life Testing in Hard Rock Drilling Environments
In mining and exploration operations involving hard rock formations, wear-life testing of spherical PCD buttons validates their extended durability compared to standard tungsten carbide inserts. These tests are conducted under simulated abrasive conditions to measure reduction in wear rates and confirm the 6–8x lifespan improvement. The pdc buttons contribute to mitigating operational costs by extending bit life and reducing intervals between replacements. Their compatibility with existing drill bit assemblies facilitates seamless integration during retrofit or new bit fabrication. This compliance ensures consistent performance in thermal cycling and maintains cutting efficiency across variable rock hardness profiles, aligning with engineering quality assurance protocols within the drilling industry.
Retrofitting and Custom Geometry Verification for Bit Performance Optimization
During retrofit planning for tricone and DTH bits, the ability to customize diameter, height, and chamfer of spherical PCD buttons provides significant advantage to engineering teams aiming to enhance tool life and drilling efficiency. Verification of custom geometries between 8–25 mm diameter and 0.3–0.5 mm chamfer ensures that these components interface correctly with bit holders, optimizing force distribution and cutting action. Integrating these buttons into operational workflows supports lifecycle cost analysis by comparing performance and maintenance savings relative to tungsten carbide alternatives. This technical adaptability assists procurement and design engineers in achieving reliability improvements and system compatibility in demanding drilling operations without requiring significant redesign.
What customization options are available for spherical PCD buttons?
Our spherical pcd buttons can be customized in diameter (8–25 mm), height (4–15 mm), and chamfer angle (0.3–0.5 mm). This flexibility allows precise adjustments to match specific drill bit geometries, ensuring optimal performance for various hard rock drilling applications.
What materials are used in manufacturing Carbide6’s spherical PCD buttons?
The buttons feature a high-purity polycrystalline diamond (over 90% diamond content) layer bonded to a tungsten carbide substrate. This combination delivers high wear resistance and toughness, essential for durability in demanding conditions with abrasive rock formations.
How does the spherical design impact drilling performance?
The 360° cutting edge of the spherical PCD button helps reduce drilling torque by distributing load evenly across the contact surface. This design enhances impact tolerance and wear resistance, contributing to a service life 6–8 times longer than conventional tungsten carbide buttons.
What is the typical lead time for custom orders of PCD buttons?
Lead times depend on order volume and specific customization requirements. For accurate delivery schedules and a tailored quote, please contact Carbide6 directly. This ensures your needs for pdc drill bits manufacturers and custom-sized components are met promptly.
