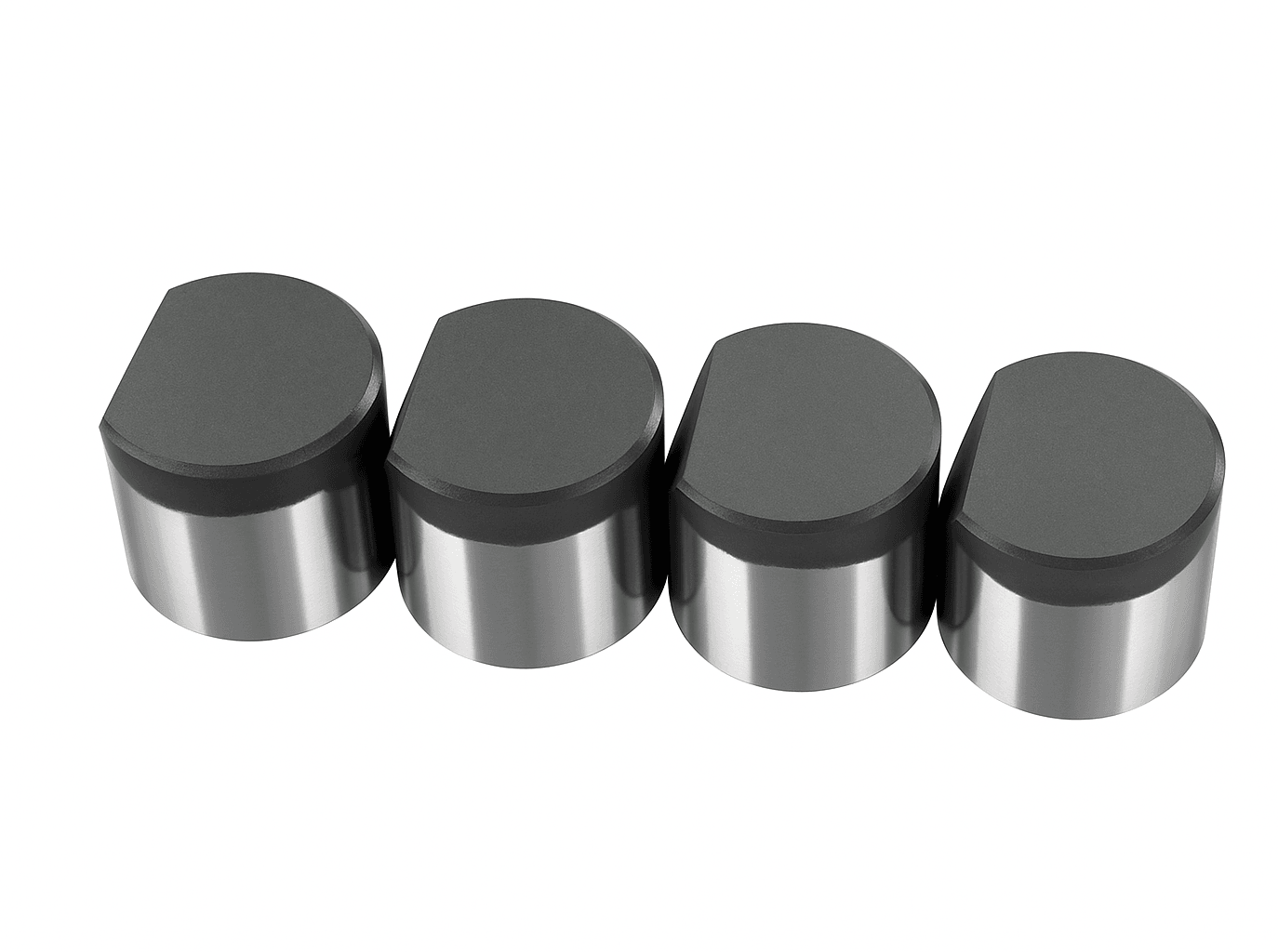

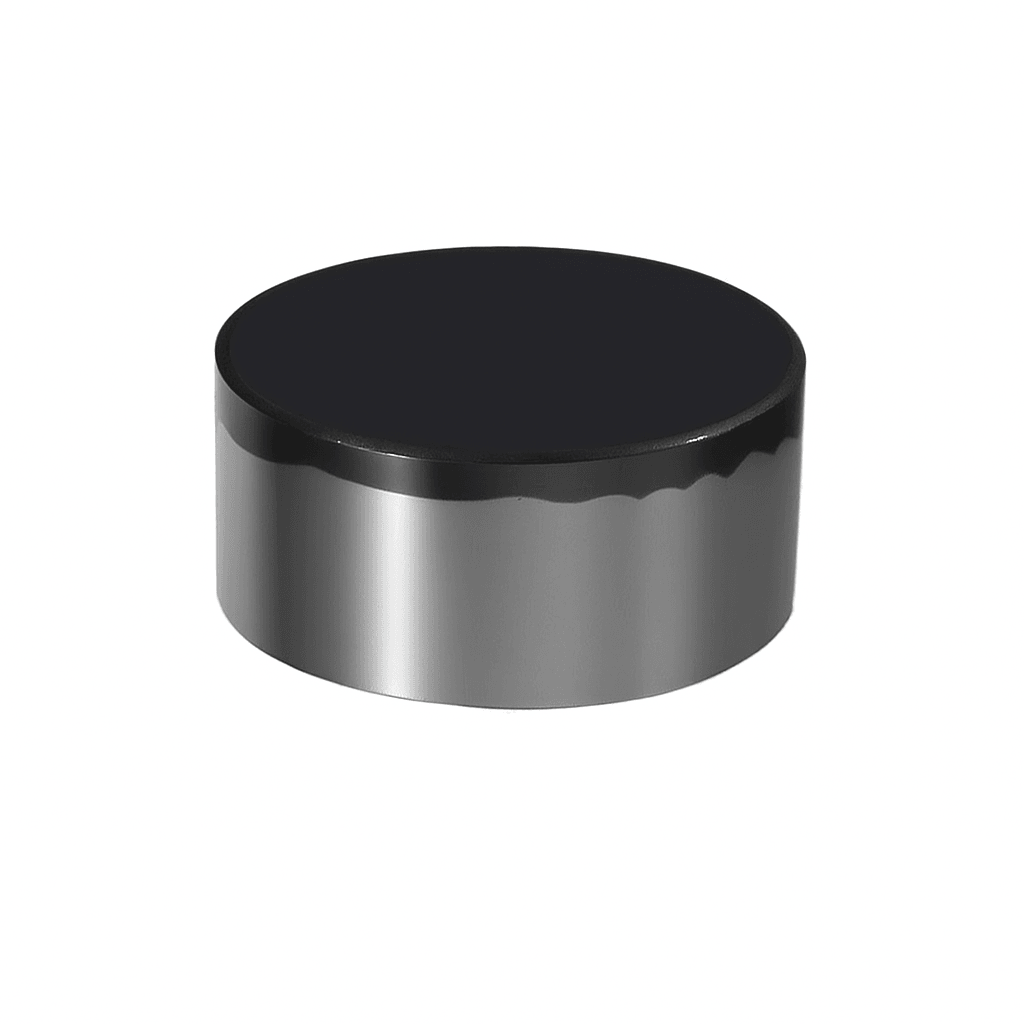

Product Name: Flat-Top PCD Buttons (Polycrystalline Diamond Buttons)
Brand/Model: Customizable
Material Composition
- PCD Layer: High-purity polycrystalline diamond (95%+ diamond content, grain size 10-25μm for smooth surface finish).
- Substrate: Tungsten carbide (WC-Co alloy, Co content 10-15% for enhanced toughness).
- Bonding: HPHT (High Pressure High Temperature) sintering at 1,500–1,700°C for strong PCD-carbide adhesion.
Product Advantages
Design and Structural Benefits of Flat-Top PCD Button Inserts
The flat-top geometry features a 100% planar contact surface that facilitates uniform load transfer during drilling, mitigating localized stress concentrations which reduce premature wear and chipping. The micro-polished finish minimizes friction-induced heat generation, while edge options allow precise control over cutting versus durability balance. The high-quality bonding of the diamond layer to tungsten carbide substrate via HPHT sintering produces a mechanically robust unit capable of withstanding thermal and impact stresses encountered in demanding drilling conditions. As a specialist psd buttons manufacturer, this design achieves superior structural stability essential for integration with advanced drilling equipment.
Performance Enhancements and Operational Value for End Users
These pcd buttons deliver exceptional wear resistance, increasing service intervals and reducing bit replacement frequency, which directly translates to lowered operational costs. The low-friction surface finish enhances penetration efficiency by minimizing heat-related degradation, improving cutting performance even in abrasive environments. Additionally, the thermal resilience up to 750°C ensures reliability during extended drilling cycles with repeated thermal variations. Users benefit from customized dimensions and edge profiles that optimize bit design and application-specific performance, positioning these inserts as valuable components in drilling system upgrading and maintenance programs.
Key Features
1. Flat-Top Geometry:
- Planar Surface: 100% flat contact area for uniform load distribution.
- Chamfered Edge: 0.2–0.5mm bevel to reduce edge chipping.
- Surface Finish: Micro-polished to Ra ≤ 0.03μm for minimal friction.
2. High Wear Resistance:
- PCD hardness ≥ HV10,000, 5–8x longer life than tungsten carbide in abrasive formations.
3. Thermal Stability: Operates up to 750°C without thermal degradation.
4. Impact Resistance: Withstands shock loads ≥60 J (suitable for medium-hard rock).
5. Customization:
- Diameter: 12–25 mm (standard: 14/18/22 mm).
- Height: 8–18 mm (standard: 10/14 mm).
- Edge Design: Sharp (for cutting) or rounded (for durability).
Applications
- Oil & Gas Drilling: Fixed-cutter drill bits, PDC bits for shale/sandstone.
- Mining: Blast hole drilling in limestone/dolomite.
- Construction: Tunnel boring machines (TBMs) for soft to medium-hard ground.
Performance Data
- Service Life: 5–8x longer than carbide in abrasive formations.
- Drilling Efficiency: 15–25% faster penetration rate in sandstone/shale.
- Cost Savings: Reduces bit replacement frequency by 30–40%.
FAQ
What materials are used in Carbide6’s Flat-Top PCD Buttons?
Our PCD buttons consist of a high-purity polycrystalline diamond layer (95%+ diamond content) bonded to a tungsten carbide (WC-Co) substrate with 10–15% cobalt. The bonding uses HPHT sintering at 1,500–1,700°C, ensuring durability and thermal stability up to 750°C for tough industrial conditions.
Can the size of Flat-Top PCD Buttons be customized?
Yes, Carbide6 offers custom sizes for PCD buttons with diameters ranging from 12 to 25 mm and heights between 8 to 18 mm. Edge designs are also customizable, with options for sharp cutting edges or rounded edges for enhanced durability, allowing precise adaptation to your specific drilling or cutting requirements.

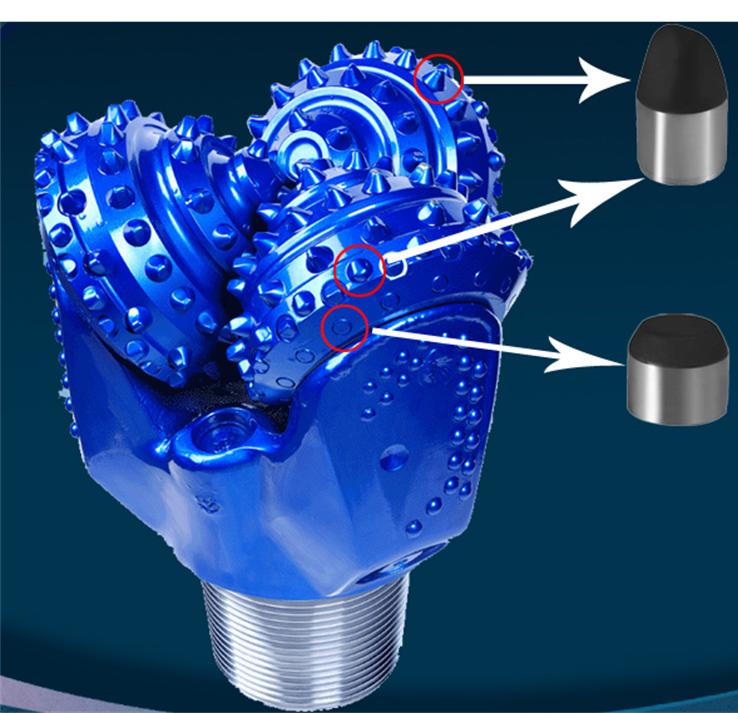

How should Flat-Top PCD Buttons be installed on drill bits?
Installation requires precise alignment and secure mounting to ensure uniform load distribution via the 100% flat contact surface of the PCD buttons. Proper edge design selection helps reduce chipping. We recommend consulting our technical team to ensure correct integration in fixed-cutter and PDC drill bit assemblies.
What is the typical lead time and shipping availability for these PCD buttons?
Carbide6 maintains a strategic logistics network to support timely delivery across Asia, Europe, and the Americas. Lead times vary depending on order size and customization. Please contact us directly with your specifications to receive accurate production timelines and shipping details for your pcd buttons manufacturer order.
