Custom Tungsten Carbide Plates & Sheets for Manufacturing | Precision Ground & Heat-Treated Surfaces

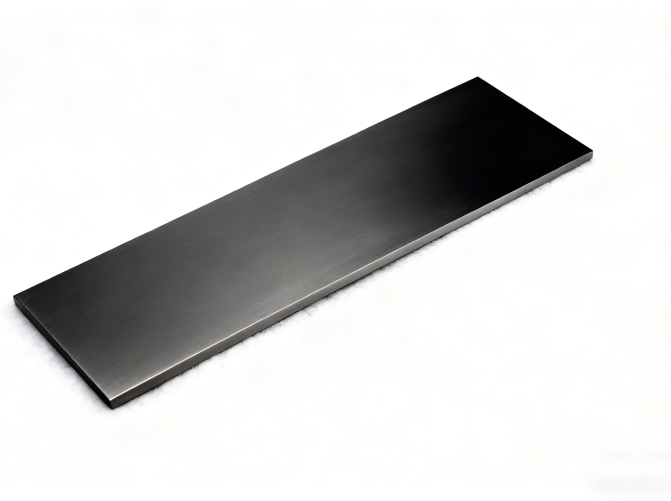

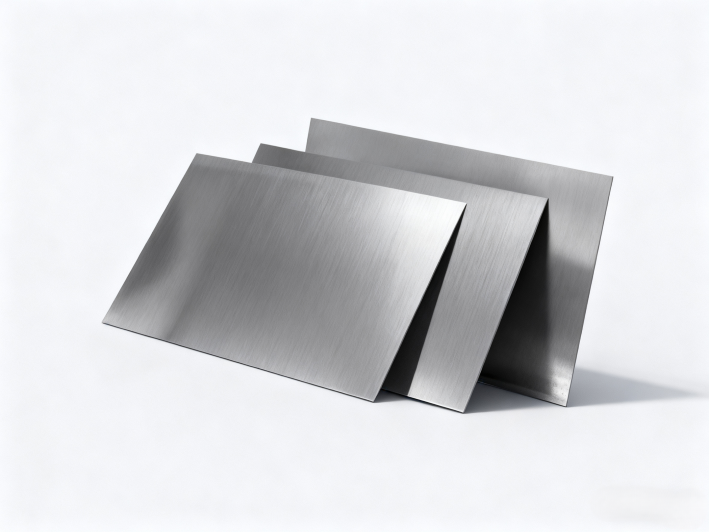

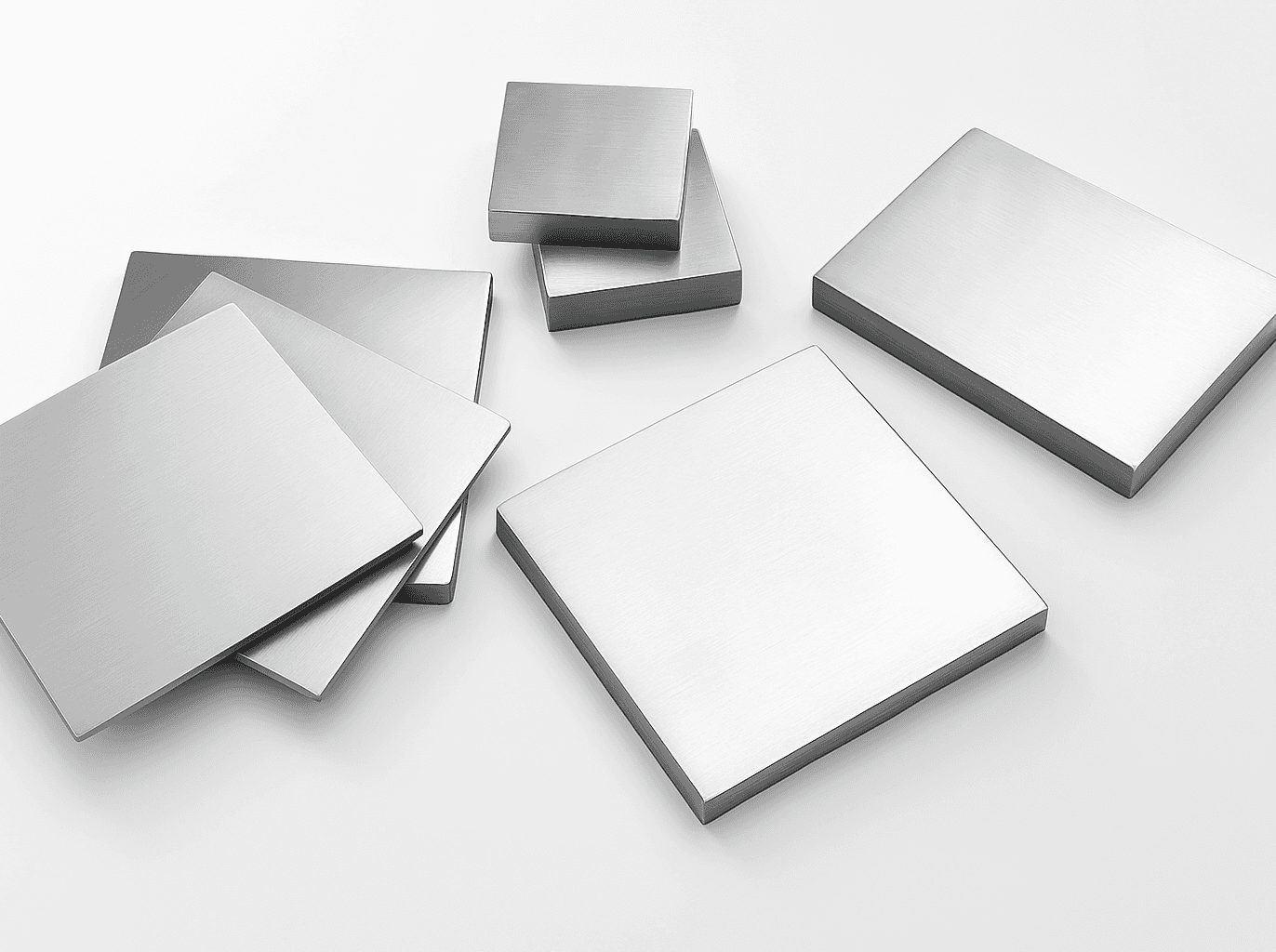

Product Name: Tungsten Carbide Plates & Sheets


Product Advantages

Structural and Design Benefits of Customization
The design framework of our Custom tungsten carbide plates incorporates modular thickness and sizing adaptability, facilitating seamless integration into existing tooling systems. Precision-ground and heat-treated surfaces offer uniform flatness and hardness distribution, minimizing geometric deviations during assembly. This approach supports complex tooling configurations and custom fixtures, enhancing system interoperability. The tungsten carbide plate substrate combines ceramic hardness with metallic toughness, which structurally resists chipping and cracking, thereby ensuring mechanical robustness in critical manufacturing environments.

Performance Enhancements and Operational Reliability
From a performance standpoint, these tungsten carbide plates provide significant wear resistance, reducing tooling refurbishment frequency and operational interruptions. Their thermal stability supports high-temperature manufacturing processes without loss of mechanical integrity, ensuring corrosion and chemical resistance. The materials deliver consistent compressive strength under demanding load conditions, contributing to improved dimensional stability of tooling components. This ultimately optimizes throughput and return on investment by extending service cycles and reducing maintenance costs for engineering end users.

Product Highlights:

•  High Hardness and Wear Resistance: With high hardness (HRA≥89.5) and excellent wear - resistant properties, they can resist abrasion and deformation, ensuring long - term use.
• Superior Strength: Their mechanical strength is about three times that of ordinary steel, and the compressive strength is ≥4000MPa, enabling them to withstand high pressure.
• Good Thermal Stability: They can maintain performance at high temperatures, with stability at 500°C and still high hardness at 1000°C, suitable for high - temperature operations.

• Chemical Resistance: Resist corrosion from acids, alkalis and high - temperature oxidation, with good chemical stability.

• Combination of Toughness and Hardness: The composite structure of carbide particles and binders combines the high hardness of ceramics and the toughness of metals.

Example Applications:

• Hardware Manufacturing and Stamping Molds: Used in the production of hardware and standard stamping molds.

• Cutting and Machining: Ideal for cutting various materials including cast iron, non - ferrous metals, plastics, and ordinary steel.

• Industrial Equipment: Applied to produce components such as tungsten electrode plates, heat shields, and heaters for use in industries like electronics, vacuum electronics, and lighting.

• Multiple Industries: Widely used in ceramics, printing, forestry, rubber, plastics, light - textile, tobacco, packaging, cable, shipbuilding, and metallurgy industries, for example, as various mechanical blades.

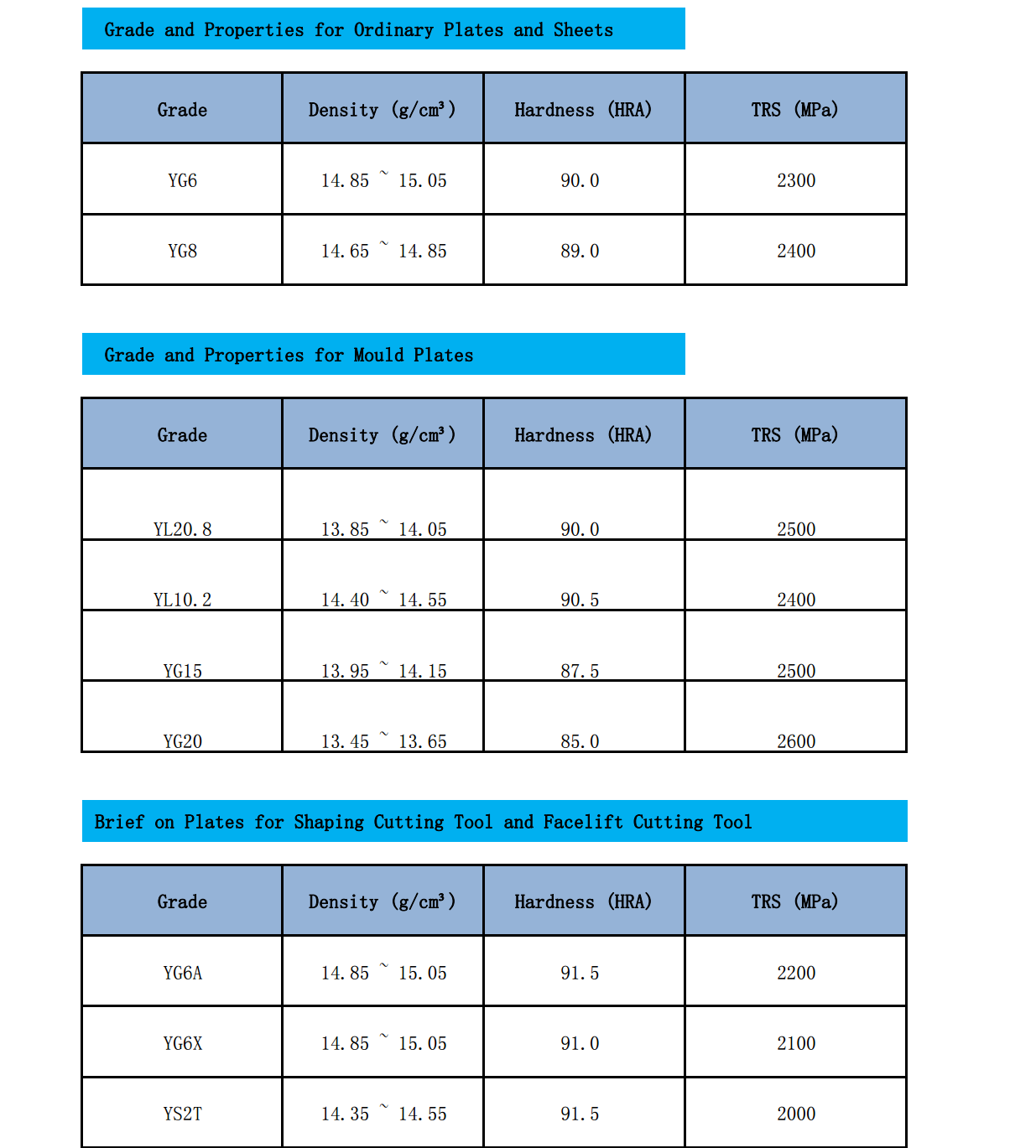

Grades, Composition and Properties:

FAQ

What materials are used in Carbide6’s custom tungsten carbide plates?
Carbide6’s custom tungsten carbide plates are made from tungsten carbide combined with metal binders. This composite offers exceptional hardness (HRA ≥ 89.5), high compressive strength, and thermal stability up to 500°C, ensuring reliability in demanding manufacturing applications.

Can I customize the size and thickness of carbide plates and sheets?
Yes, Carbide6 offers customization for tungsten carbide plates, including various thicknesses and sizes to fit specific tooling geometries. For detailed options and quotes, please contact Carbide6 directly as sizes are not predefined on the product page.

How do I install or integrate tungsten carbide plates in manufacturing tools?
Tungsten carbide plates from Carbide6 are designed for integration into tooling assemblies demanding wear resistance and high-load performance. They suit applications like stamping, cutting, and high-load forming and require secure mounting based on your tooling design specifications.

What are the lead times and order minimums for carbide plates?
Lead times and minimum order quantities for Carbide6’s custom tungsten carbide plates vary by order complexity and volume. Since this information is not specified online, please reach out to Carbide6’s sales team for current production schedules and order requirements.
