Core Definition & Manufacturing Process

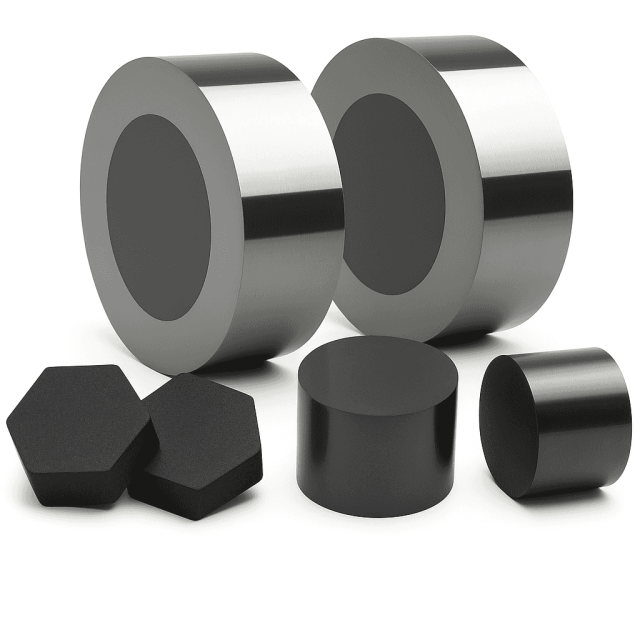

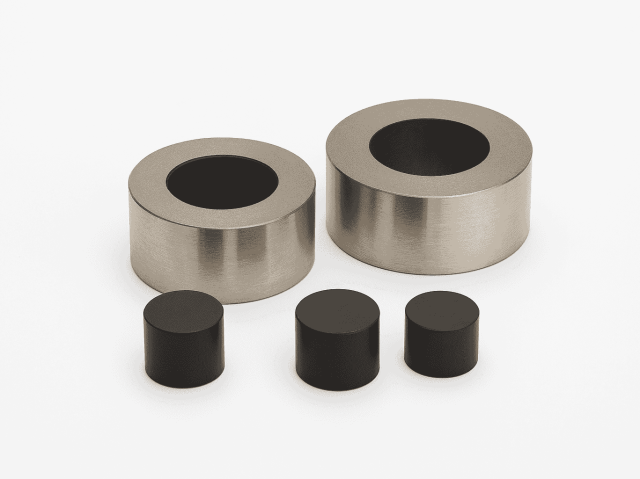

PCD (Polycrystalline Diamond) die blanks are ultra-hard composite materials engineered by sintering micron-sized diamond particles with cobalt/nickel binders under high-pressure/high-temperature (HPHT) conditions. The resulting structure combines diamond’s intrinsic hardness (8,000–10,000 HV) with the toughness of a metallic matrix, enabling durability in extreme abrasive environments.
Key Technical Specifications
Market Applications & Competitive Advantages
Targeted High-Precision Tooling Components for Industrial Applications
Custom PCD die blanks serve industries requiring superior wear resistance and dimensional accuracy. Designed primarily for engineers and procurement professionals, these blanks address demanding needs in wire drawing, aerospace machining, and geological drilling sectors. Our products enable fabrication of durable dies meeting strict tolerances, supporting manufacturers who rely on consistent quality to improve process yield. With precise dimensions and extended service life, the PCD blanks are compatible with various industrial setups incorporating pdc drill bit tooling and pcd buttons for enhanced operational efficiency.
Material Composition and Technical Specifications for Reliability
Our PCD die blanks are fabricated under high-pressure high-temperature (HPHT) conditions, combining micron-scale diamond particles with cobalt or nickel binders. Particle sizes range from 1 to 50 μm to optimize wear resistance and cutting performance. Thickness tolerances span from ±0.005 mm for precision-grade applications to ±0.02 mm in industrial-grade blanks, ensuring repeatability in production. Thermal stability is rated up to 700°C with cobalt bonding and 1,000°C with nickel bonding. Custom sizes up to Φ50 mm are available, facilitating bespoke solutions for tooling manufacturers utilizing diamond turning inserts and other specialized pdc drill bits manufacturers components.
Industry Applications Validating Performance and ROI Enhancements
PCD die blanks provide measurable benefits in multiple sectors such as wire-drawing, where they dominate 65% of global demand due to their lifespan superiority over tungsten carbide dies. In aerospace and automotive precision machining, these blanks enable sub-micron tolerances essential for high-performance components. Additionally, geological drilling employs PCD blanks within PDC cutters to reduce operational costs and wear-related downtime. The reliable integration of these blanks with pcd insert tooling systems ensures consistent productivity improvements and cost savings across supply chains.
Product Advantages
Structural Innovation and Design Integration
The sintered composite design of our PCD die blanks combines ultra-hard diamond particles with a tough metallic matrix, leveraging the hardness of diamond while retaining essential toughness through cobalt or nickel binders. This engineered structure facilitates integration with precision tooling assemblies containing pcd buttons or diamond turning inserts, enabling modular customization. Thickness control down to ±0.005 mm supports high-accuracy die manufacturing, while the availability of custom geometries up to Φ50 mm allows adaptation to diverse tooling configurations. This design system enhances compatibility within established industrial tool chains managed by professional engineers and procurement teams.
Enhanced Operational Performance and Strategic User Benefits
Our PCD die blanks are engineered to sustain high thermal loads and abrasive environments, delivering up to 10 times longer lifespan compared to traditional tungsten carbide blanks. This significantly reduces maintenance intervals and tooling replacement costs. The blanks’ precision in thickness and particle size distribution ensures stable cutting performance and reproducibility in wire drawing and precision machining processes. They also support extended tool life in geological drilling applications, providing measurable ROI benefits for production managers seeking reliable, efficient solutions with low lifecycle costs. Integration with established pdc drill bit systems guarantees compatibility and optimized return on investment.
Use Scenarios
Application in Wire Drawing and Metal Forming Operations
Within heavy industrial metal forming and wire drawing environments, PCD die blanks are critical components responsible for shaping wire under continuous abrasive conditions. Our blanks’ superior wear resistance and precise tolerances allow manufacturers to maintain consistent wire diameter and surface finish while reducing unscheduled die replacements. Their robustness against thermal and mechanical stress aligns with operational demands in steel production and copper wire manufacturing. These properties optimize workflow integration by minimizing downtime and enhancing throughput when combined with pcd insert equipped die sets, fulfilling stringent industrial specifications.
Role in Aerospace and Automotive Precision Machining
In aerospace and automotive component manufacturing, custom PCD die blanks support high-precision milling and drilling operations on tough alloys such as titanium. The blanks’ fine-tuned particle sizes and binder compositions contribute to maintaining sub-micron tolerances and reducing tool wear. This technical advantage ensures compliance with strict industry standards and certification requirements for safety-critical parts. When used in conjunction with compatible diamond turning inserts, these blanks integrate seamlessly into CNC machining centers, enhancing process stability and delivering operational consistency essential for high-value production environments.
Carbide6 is a professional tungsten product manufacturer based in Zhuzhou, Hunan, China. With a strong commitment to quality and innovation, we have established ourselves as a reliable and competitive player in the global tungsten industry. We deliver cutting-edge solutions tailored to meet the demands of industries such as mining, oil and gas, medical radiation shielding, automotive, and aerospace.
Our main product range encompasses a diverse array of high-performance tungsten-based items. We specialize in producing PCD (Polycrystalline Diamond) buttons, which are widely recognized for their exceptional hardness and wear-resistance, making them ideal for use in drilling, mining, and construction applications. These PCD buttons are flagship products known for their consistent quality and outstanding performance in demanding environments.
In addition to PCD buttons, we offer a comprehensive selection of tungsten alloys engineered for aerospace, automotive, and electronics industries, where high strength, density, and corrosion resistance are essential. Our tungsten carbides provide excellent cutting and machining capabilities for industrial processes. We also manufacture pure tungsten parts used in applications requiring high melting points and electrical conductivity, such as electrical contacts and heating elements. One of our standout product lines is nuclear medical radiation shielding, designed to deliver superior protection while ensuring compatibility with medical procedures.
At Carbide6, we leverage advanced manufacturing techniques and strict quality control measures to meet the highest industry standards. Our state-of-the-art production facilities and experienced team allow us to provide customized solutions tailored to our clients' specific needs. Whether you require standard tungsten products or bespoke designs, we deliver with professionalism and efficiency. Contact us now for your custom quote!
What binder materials are used in your PCD die blanks?
Our PCD die blanks are produced using either cobalt-based binders, which are standard and suitable for most applications, or nickel-based binders designed for high-temperature environments. These binder options allow enhanced thermal stability up to 700°C for cobalt and 1,000°C for nickel, ensuring durability in extreme operating conditions.
Can I request custom sizes or geometries for PCD die blanks?
Yes, we offer custom sizes of PCD die blanks up to Φ50 mm in diameter. Our manufacturing capabilities also support customized geometries tailored to specific tooling needs, enabling optimized performance for applications such as wire drawing, precision machining, and geological drilling with precise thickness tolerances.
How do your PCD die blanks compare to traditional carbide dies for wear resistance?
Our ultra-hard PCD die blanks, sintered under HPHT conditions, provide 5–10 times longer wear life than conventional tungsten carbide dies. This superior wear resistance makes them especially suitable for wire drawing dies and precision inserts, reducing downtime and maintenance costs while maintaining sub-micron machining tolerances.
What logistical support do you provide for international industrial buyers?
Carbide6 operates a strategic logistics network, ensuring timely delivery across Asia, Europe, and the Americas. We support fast prototype turnaround and small-batch orders for pcd insert and pdc drill bit components, facilitating efficient supply chain management for industrial clients requiring reliable, high-precision parts.
