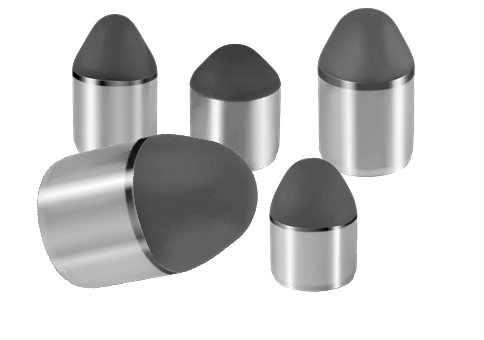

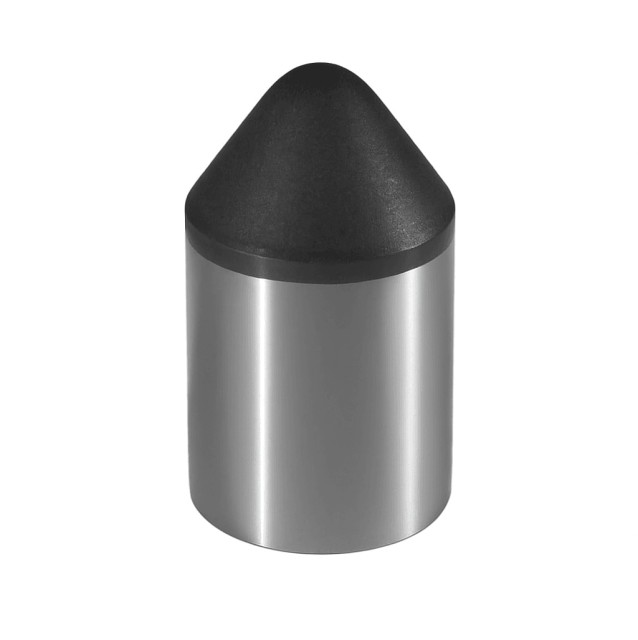

Product Name: Conical-Ball PCD Buttons (Polycrystalline Diamond Buttons)
Brand/Model: Customizable
Material Composition
- PCD Layer: High-purity polycrystalline diamond (95%+ diamond content, grain size 15-30μm).
- Substrate: Tungsten carbide (WC-Co alloy, Co content 10-12% for enhanced impact resistance).
- Bonding: HPHT sintering (1,600°C, 7 GPa) for strong PCD-carbide adhesion.
Product Advantages
Design Optimization for Enhanced Compatibility and Durability
The structural advantages of conical ball PCD buttons derive from their integrated conical-tip geometry conjoined with a spherical base, optimizing load dispersion and reducing stress concentrations during drilling. The HPHT sintering technique ensures superior bonding between the polycrystalline diamond layer and tungsten carbide substrate, improving resistance to delamination under extreme mechanical and thermal loads. Modular sizing options spanning several diameter and height combinations further facilitate modular tool design, enabling engineers to select configurations tailored to specific rock formations while maintaining API compliance for seamless system integration.
Operational Excellence Through Performance and Usability
Performance benefits of conical ball PCD buttons manifest in their high-impact resistance and friction-reducing micro-polished surfaces, factors critical for maintaining penetration rates and controlling bit wear under abrasive conditions. This reduces downtime and extends service intervals, directly influencing the ROI for drilling operations. Additionally, consistent manufacturing tolerances simplify installation and replacement procedures, providing end users with straightforward maintenance and minimal operational disruption. The product’s thermal stability also ensures reliable performance even in elevated temperature environments common in deep drilling scenarios.
Key Features
1. Hybrid Geometry:
- Conical Tip: 60°-120° apex angle for aggressive penetration.
- Spherical Base: Radius 2-5mm for smooth load distribution.
- Edge Retention: Micro-polished surface (Ra ≤ 0.05μm) reduces friction.
2. High Impact Resistance:
- Withstands shock loads ≥80 J (suitable for hard/interbedded rock).
3. Thermal Stability: Operates up to 850°C without thermal degradation.
4. Wear Resistance: PCD surface hardness ≥ HV12,000, 8-10x longer life than carbide.
5. Customization:
- Diameter: 12-25 mm (standard: 14/18/22 mm).
- Height: 8-20 mm (standard: 10/14/18 mm).
- Tip Angle: 60° (hard rock) to 120° (soft rock).
Applications:

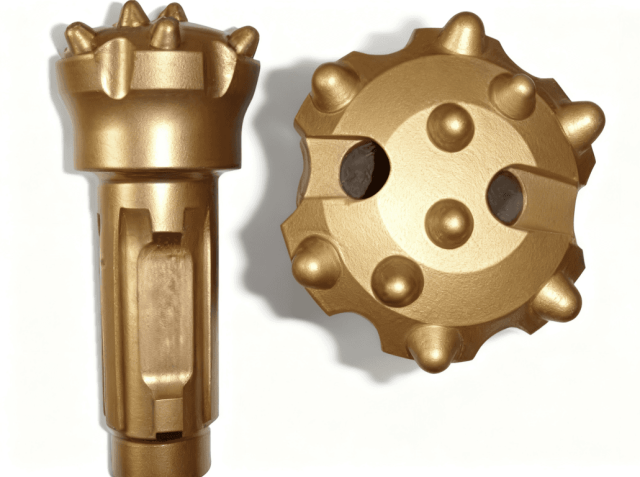

- Oil & Gas Drilling: Roller cone bits, hybrid drill bits, percussion bits.
- Mining: Blast hole drilling, directional drilling in granite/basalt.
- Construction: Tunnel boring machines (TBMs) for mixed-face ground conditions.
Performance Data:
- Service Life: 8-12x longer than tungsten carbide in hard rock.
- Drilling Efficiency: 20-30% faster penetration rate in granite/basalt.
- Cost Savings: Reduces bit replacement frequency by 40-50%.
FAQ
What materials are used in the manufacturing of Conical-Ball PCD Buttons?
Conical-Ball PCD Buttons consist of a high-purity polycrystalline diamond (95%+ diamond content) layer bonded to a tungsten carbide (WC-Co) substrate. This bond is created via HPHT sintering at 1,600°C and 7 GPa, ensuring strong adhesion and durability under harsh drilling conditions.
Can Conical-Ball PCD Buttons be customized to fit specific drilling requirements?
Yes, these conical ball PCD buttons offer customization in diameter (12–25 mm), height (8–20 mm), and tip angles (60°–120°). Custom geometry and size options enable engineers to tailor the buttons for optimized penetration and load distribution in different rock formations.
Are Conical-Ball PCD Buttons compatible with standard roller cone bits?
The product design complies with API standards, ensuring compatibility with standard roller cone bit tooling. This facilitates seamless integration into existing drilling equipment while maintaining reliable performance in hard rock applications.
What logistical considerations are important when purchasing from PCD Buttons suppliers?
When sourcing from PCD Buttons suppliers like Carbide6, customers should consider lead times for custom specifications, quality certifications, and shipping arrangements. Carbide6 maintains strict quality control and offers technical support to ensure products meet application needs efficiently.
